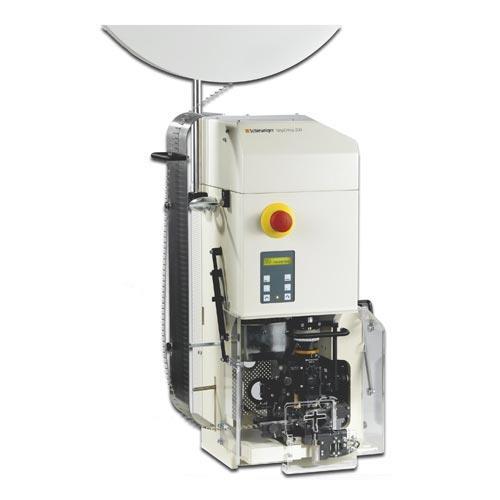

StripCrimp 200
Programmable, high precision stripper-crimper for side-/rear-feed terminals for wires 0.05 – 4 mm² (30 – 12 AWG).
Features
All stripping parameters and special functions can be programmed and saved:
- Wire cross section, correction value, way-back, recut, stripping length, stripping position, multi-step-stripping, press speed
- Counter function, language, unit of measurement, CFM activation, pneumatic terminal feed, operating mode (only stripping, only crimping, stripping and crimping), password, diagnostic function
- Active slug removal
- Quick-change applicator base plate
- Jogging function (left/right) with home position display and automatic home position function
- Fine adjustment of crimp height (micro-adjustment)
Options
- Pneumatic valve to activate pneumatic crimp applicators
- Crimp force monitoring
- Short outer jacket stripping kit (assembled on UNI-A crimp applicator
- Terminal oiler
- Paper winder
- Work light
Technical Specifications
| Attribute | Value |
| Cross Section Range | 0.05 – 4.0 mm2 ( 30 – 12AWG) |
| Outer Diameter | up to 6.3 mm ( 0.25”) |
| Cycle Time | < 0.9 s for stripping and crimping (crimp cycle time programmable from 350 ms to 1 s) |
| Press Force | 33 kN (3.7 tons) |
| Press Stroke | 40 mm (1.575”) |
| Shut Height | 135.788 mm (5.3460”) |
| Crimp Height Adjustment | ± 0.25 mm (0.01”), in increments of 0.025 mm (0.001”) |
| Stripping Length | 0.5 – 15 mm (0.02” – 0.59”) |
| Way-back | programmable, 0 – 2mm |
| Recut | 0 – 4 mm (0 - 0.157”) |
| Cycle Trigger | Sensor actuator (foot pedal optional) |
| Cable Clamping | clamping force adjustable with pneumatic pressure reducing valve |
| Memory Capacity | 100 |
| Noise Level | < 70 dB (A) |
| Power Supply | 115 VAC - 230 VAC, 50/60 Hz, 255 VA |
| Power Rating | 0.75 KW |
| Dimensions (W x D x H) | 350 mm x 350 mm x 710 mm (13.8” x 13.8” x 28.0”) |
| Weight | 90 kg (198 lbs) |
| CE – Conformity | The StripCrimp 200 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Important Notice | Schleuniger recommends that wire samples be submitted in case where there is
doubt as to the processing capabilities of a particular machine. |
