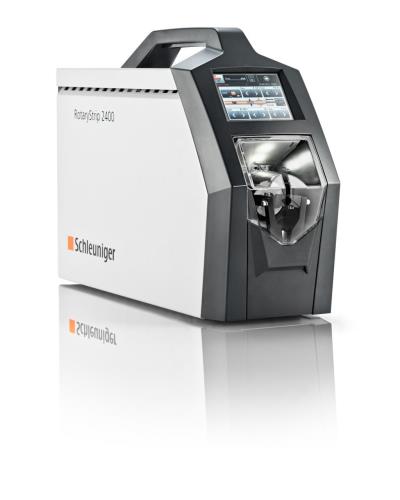

RotaryStrip 2400
Programmable stripping machine for wire sizes from 0.013 - 6 mm2 (36 - 10 AWG) and twist wires ranging in size from 0.14 - 2.5 mm2 (26 - 13 AWG).

Overview

The RotaryStrip 2400 is an impressive, fully programmable stripping machine with high precision and flexibility. Wire sizes from 0.013 - 6 mm² (36 - 10 AWG) can be processed without any mechanical adjustments. The RotaryStrip 2400 can strip wires with various insulation types including Kapton, Fiberglass and Teflon. The RotaryStrip 2400 also has the capability to strip and twist wires ranging in size from 0.14 mm - 2.5 mm² (26 - 13 AWG).

  • Intuitive color touch screen user interface
  • No mechanical adjustments required when changing wire sizes
  • Very sensitive trigger sensor – works great for small, fl exible wires
  • Operator has clear view of the entire working area
  • Controlled twisting of inner conductors
  • Barcode scanning function

Application Range

The Schleuniger RotaryStrip 2400 strips wires ranging in size from 0.013 – 6 mm² (36 – 10 AWG) and jacketed cables up to 7 mm (0.27") in diameter. The main applications are diffi cult to process insulations and wires where a controlled twisting of the inner conductors is required. This innovative machine does not require any mechanical adjustments to process different wire sizes. Using the color touchscreen, the operator selects the desired wire size from the preprogrammed library and all parameters (incision diameter, clamping pressure, blade way back, etc.) are automatically set. The operator edits the stripping and pull-off lengths as required and the machine is ready for operation. The RotaryStrip 2400 begins the stripping process when the wire end touches the trigger sensor. The wire is automatically clamped and the stripping process is performed according to the programmed values. If desired, the program can be saved to internal memory for future use.

Material

  • Cable
  • Discrete Wire
  • Fiberglass
  • Kapton
  • Multi-conductor Cable
  • Single Conductor Cable
  • Solid Wire
  • Stranded Wire
  • Teflon®
  • Wire

Processing Capabilities

  • Discrete wire processing
  • Full strip
  • Multi-conductor cable processing
  • Multi-step stripping
  • Partial strip
  • Twisting function

More information

Features

  • Intuitive color touch screen user interface
  • No mechanical adjustments required when changing wire sizes
  • Very sensitive trigger sensor – works great for small, flexible wires
  • Operator has clear view of the entire working area
  • Controlled twisting of inner conductors
  • Barcode scanning function

Programmable Processing Parameters

  • Pull-off with or without rotation of the stripping head
  • Pull-off speed
  • Stripping lenghts partial strip
  • Stripping lengths full strip
  • Extra spin time of the stripping head
  • Spindle direction of the stripping head
  • Rotational speed of the stripping head
  • Stripping diameter
  • Wayback (opens blades slightly before pulling off)
  • Feed rate of the stripping blades
  • Cable clamping force

Technical Specifications

Conductor Cross-Section

0.013 – 6 mm² (36 – 10 AWG)

Raw Material Diameter

Maximum 7 mm (0.27")

Diameter Increments

0.01 mm (0.001")

Strip Length

Minimum 0.1 mm (0.01")
Maximum 34 mm (1.33")

Strip Length Increment

0.1 mm (0.01")

Cycle Time

1 s (0.75 mm² (18 AWG) wire, stripping length 10 mm (0.39"), pull-off length 5 mm (0.19"))

Cycle Start

Automatic trigger sensor or optional foot pedal

Raw Material Type

PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.

Clamping

Programmable clamping force

Memory Capacity

1,000 wires or cables (memory function only with "extended wire")

Interfaces

Foot pedal, USB "Host"

Options

Foot pedal, radius centralizers

Noise Level

<70 dB (A)

Power Supply

100/115 VAC, 230/240 VAC, 100 VA / 50/60 Hz

Dimensions (L x W x H)

390 x 130 x 280 mm (15.3" x 5.1" x 11.0")

Weight

10 kg (22 lbs.)

CE-Conformity

The RotaryStrip 2400 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
