Floor-Type Assembly Line

Floor-Type Assembly Line
Traditional floor-type wire harness assembly lines offer a sturdy and simple design for a wide range of applications.

Overview

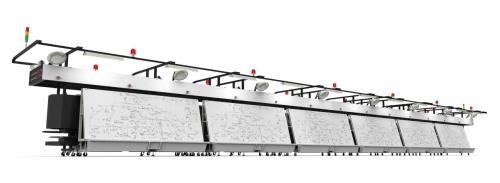

Traditional floor-type wire harness assembly lines offer a sturdy and simple design for a wide range of applications. Work boards are placed on the trolleys. Driven by a frequency controlled motor and conveyor chain, the trolleys move along the floor at a set speed. As each trolley reaches the end of the line, it travels in an arc to the other side. Operation continues in this fashion.

  • Wire harness assembly line moves continuously
  • Compact structure for small footprint and easy maintenance
  • Adjustable work board angle
  • The quantity and size of the work board holders are customer specific

More Information

Options

  • Display screen with actual production quantity
  • Document hanging system
  • Sliding work holder
  • Workstation lighting
  • Workstation fans

Technical Specifications

Workboard Sides

1-3

Speed Correction

Frequency controlled motor

Speed

555 - 4,560 mm/min

Workboard Angle

55°, 60°, 65°

Workboard Dimensions (L x W)

2,400 x 900 mm (94.5 x 35.4“)
3,000 x 900 mm (118.1 x 35.4“)
3,600 x 900 mm (141.7 x 35.4“)
4,200 x 900 mm (165.4 x 35.4“)
(The quantity and size of the work board holders are customer specific)
