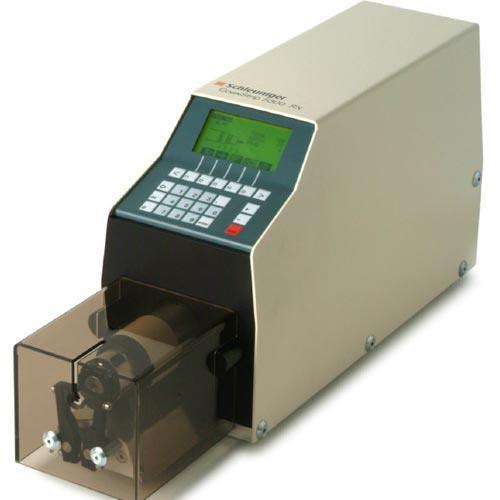

CoaxStrip 5300 RX

CoaxStrip 5300 RX
Programmable stripping machine for micro-coaxial cables from inner diameters of 0.07 mm (0.003") up to 2 mm (0.079") O.D.

Functions

Programmable settings for each step of each program :

  • Stripping position
  • Stripping diameter
  • Feed rate of the stripping blades
  • Rotational speed of the stripping head
  • Spindle direction of the stripping head
  • Extra spin time of the stripping head
  • Wayback (opens blades slightly before pulling off)
  • Stripping lengths (partial strip or full strip)
  • Pull-off speed
  • Pull-off with or without rotation of the stripping head
  • Cable clamping force

Special Features

  • Wire list processing
  • Iguana TM Wire Processing Software (optional)
  • Diagnostics features
  • Password protection with different user levels
  • Equipped with waste vacuum system (to prevent maintenance-related machine downtime)
  • High output rates with highest precision

Technical Specifications

Attribute Value
Max. Cable Diameter 2 mm (0.079”)

Min. Inner Diameter

0.07 mm (0.003”)

Diameter Increments

0.01 mm (0.001”)

Max. Stripping Length

29 mm (1.14”)

Stripping Length Increments

0.01 mm (0.001”)

Max. Stripping Steps

9

Cable Clamping

Motor driven with programmable clamping force

Production Rate

650 pcs. / hour (depending upon cable type and programming)

Program Capacity

1000 cables / 100 wire lists

Interfaces

RS 232, foot pedal

Noise Level < 70 db (A)

Power Supply

100 / 240 VAC: fuse 3.15 A/T
50 – 60 Hz, 100 VA

Compressed Air

0.4 – 0.6 Mpa (4 – 6 bar)

Dimensions (L x W x H)

494 x 140 x 218 mm (19.4 x 5.5 x 8.6”)

Weight

9 kg (20 lbs)

CE – Conformity

The CoaxStrip 5300 RX fully complies with all CE and EMC equipment guidelines
relative to mechanical and electrical safety and electromagnetic compatibility.

Important

Note Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
