Designed for use with side- and end-feed, banded terminals of open or closed barrel construction.

Overview

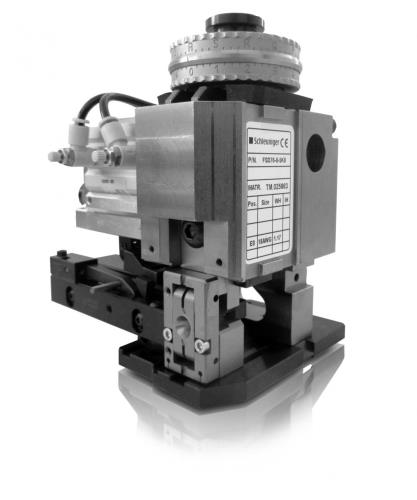

The Uni-S is the latest generation crimp applicators for use in both automatic and semi-automatic benchtop crimping machines. Banded terminals of open or closed barrel construction with either metal or plastic carriers can easily be processed.

  • Economically priced applicators to handle practically all terminal and feed types
  • Rugged construction and simple set up to ensure long life and high quality results
  • Includes convenient micro-adjust dials, a 6-digit counter and one additional set of tooling
  • For use on automatic terminating machines as well as benchtop crimping presses

Application Range

The Uni-S family of applicators are designed for use with side- and end-feed, banded terminals of open or closed barrel construction. Handling and set up is as easy as ever. The Uni-S is suitable for use on automatic wire processing systems as well as on benchtop presses for terminals with either metal, plastic or Mylar tape carrier strips.

  • Open barrel terminals on metal carrier strips, with or without weather seals
  • Pre-insulated terminals on plastic or Mylar tape carrier strips
  • Front, middle or center carrier strips
  • Insulated end ferrules in strip form
  • Open barrel end ferrules (clips) in strip form
  • Wire splice terminals

More Information

Features

  • Economically priced applicators to handle practically all terminal and feed types
  • Rugged construction and simple set up to ensure long life and high quality results
  • Includes convenient micro-adjust dials, a 6-digit counter and one additional set of tooling
  • For use on automatic terminating machines as well as benchtop crimping presses

Models

  • Mechanical side- and end-feed
  • Pneumatic side- and end-feed
  • Pneumatic side-feed for insulated end ferrules
  • Pneumatic side-feed for Mylar tape
  • Mechanical end-feed for splice terminal

Options

  • Additional tooling sets
  • Cross sectional images
  • Capability studies on crimp height and pull test
  • Integrated wire funnels (for closed barrel terminals)

Technical Data

Feed Type

Mechanical or pneumatic

Stroke

40 and 30 mm (1.57 or 1.18") (Other strokes available on request)

Conductor Cross-Section

0.08 – 6 mm2(28 – 10 AWG)

Terminal Pitch

Minimum: 1 00 (0.04")
Maximum: 30 mm (1.18”) (pneumatic feed recommended for 25 mm (1“) or more)

Crimp Height Adjustment

Increment: 0.025 mm (0.001”)
Maximum: 1.5 mm (0.06”)

Compressed Air Connection

6 – 8 bar (90 – 110 psi) (pneumatic applicators only)

Weight

5 kg (11 lbs.)

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
