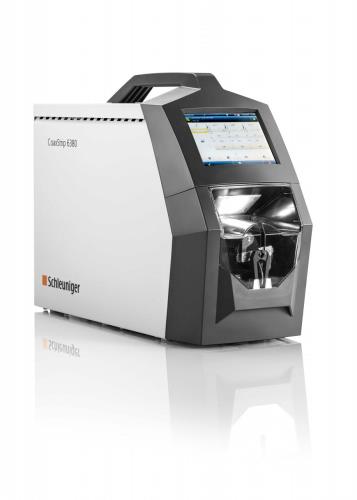

CoaxStrip 6380

CoaxStrip 6380
Fully programmable multi-step stripping machine for coaxial, triaxial and multi-conductor cable as well as single conductor wire up to 8 mm.


The CoaxStrip 6380 is a fully programmable multi-step stripping machine for coaxial, triaxial and multi-conductor cable as well as single conductor wire. Very fast cycle times, multiple steps with freely selectable stripping sequence, cable diameter verification, cable end detection, and automated cable retraction functions guarantee high precision and reliability. With Schleuniger‘s standardized S.On user interface for simple programming, a sample programming library and 1,000 program memory, this machine is ideal for low volume, quick changeover applications as well as high volume production runs, giving the best possible flexibility and productivity for your production needs.

Application Range


  • Cable
  • Coaxial Cable
  • Discrete Wire
  • Double Insulated Wire Processing
  • High Speed Data Cable
  • Kapton
  • Micro-Coaxial Cable
  • Micro-Triaxial Cable
  • Multi-conductor Cable
  • Polyester
  • Polyurethane
  • PUR
  • PVC
  • Rubber
  • Shielded Cables
  • Silicon
  • Single Conductor Cable
  • Single Wire
  • Solid Wire
  • Stranded Wire
  • Teflon®
  • Tefzel®
  • Triaxial Cable
  • Wire
  • Wire with Special Isolation

Processing Capabilities

  • Coax cable strip
  • Coaxial cable processing
  • Conformable cable processing
  • Discrete wire processing
  • Discrete wire stripping
  • Full or partial strip left and right
  • Full strip
  • Jacket and inner conductor stripping
  • Micro-coaxial cable processing
  • Multi-conductor cable processing
  • Multi-conductor cable stripping
  • Multi-layer stripping
  • Multi-step stripping
  • Partial strip
  • Triaxial cable processing
  • Twisting function
  • Two-layer strip

Technical Specifications

Raw Material Diameter

Minimum 0.6 mm (0.024“)
Maximum 8 mm (0.314“)

Conductor Diameter

Minimum 0.15 mm (36 AWG)

Diameter Increments

0.01 mm (0.001“)

Strip Length

Maximum 40 mm (1.57“)

Strip Length Increment

0.01 mm (0.001”)

Stripping Steps

Maximum 6


Motor driven with programmable clamping force

Cycle Time

≥ 3 s (depending upon cable type and programming)

Production Rate

400 - 800 pcs./h (depending upon cable type and programming)

Memory Capacity

1000 cables


2x USB, 2x Ethernet, 3x SMI (Option)

Noise Level

61 db (A)

Power Supply

100-240 VAC, 50/60 Hz

Compressed Air Connection

0.4 - 0.6 Mpa / 4-6 bar / 60 - 90 psi, 5-12 l/min

Dimensions (L x W x H)

490 x 182 x 353 mm (19.3 x 7.2 x 13.9”)


19 kg (42 lbs.)


The CoaxStrip 6380 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
