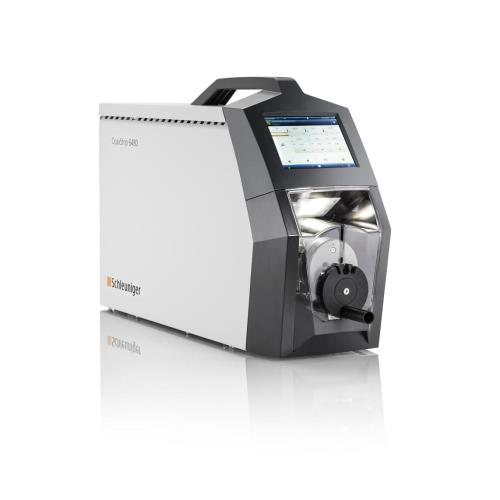

CoaxStrip 6480
Fully programmable multi-step stripping machine for coaxial, triaxial and multi-conductor cable as well as single conductor wire up to 12 mm.
Overview
The CoaxStrip 6480 je plne programovateľné viackrokové odizolovacie zariadenie pre koaxiálne, triaxiálny a viacžilový kábel, ako aj pre jednožilový káble. Veľmi rýchle cykly, možnosť viacerých krokov s voľne voliteľnou odizolovacou sekvenciou, overenie priemeru kábla, detekcia konca kábla a automatizované funkcie vtiahnutia kábla zaručujú vysokú presnosť a spoľahlivosť. Nárezy nožov sú lineárne a kolmé na os kábla, čo má za následok čistý a vysoko precízny rez. Ochranný kryt je možné odstrániť bez použitia náradia, ćo uľahčuje údržbu zariadenia.
Application Range
Programmable settings for each step of each program
- Stripping position
- Incising diameter
- Centering jaw diameter
- Incising speed
- Rotational speed of the stripping head
- Rotational direction of the stripping head
- Incising pause
- Pull-off diameter
- Stripping lengths (partial strip or full strip)
- Pull-off speed
- Pull-off with or without rotation of the stripping head
- Freely selectable stripping sequence
- Cable clamping force
Material
- Cable
- Coaxial Cable
- Corrugated Cable
- Discrete Wire
- Double Insulated Wire Processing
- High Speed Data Cable
- High Voltage Cable
- Kapton
- Multi-conductor Cable
- Polyester
- Polyurethane
- PUR
- PVC
- Rubber
- Shielded Cables
- Silicon
- Single Conductor Cable
- Single Wire
- Solid Wire
- Stranded Wire
- Teflon®
- Tefzel®
- Triaxial Cable
- Wire
- Wire with Special Isolation
Processing Capabilities
- Coax cable strip
- Coaxial cable processing
- Conformable cable processing
- Discrete wire processing
- Discrete wire stripping
- Full or partial strip left and right
- Full strip
- Jacket and inner conductor stripping
- Multi-conductor cable stripping
- Multi-layer stripping
- Multi-step stripping
- Power cable processing
- Triaxial cable processing
- Twisting function
- Two-layer strip
Technical Specifications
| |
Raw Material Diameter | Minimum 1.2 mm (0.047“)
Maximum 12 mm (0.47“) |
Diameter Increments | 0.01 mm (0.001“) |
Strip Length | 50 mm (1.96“) |
Strip Length Increment | 0.01 mm (0.001”) |
Stripping Steps | Maximum 6 |
Clamping | Motor driven with programmable clamping force |
Cycle Time | ≥ 4 s (depending upon cable type and programming) |
Production Rate | 400 - 650 pcs./h (depending upon cable type and programming) |
Memory Capacity | 1000 cables |
Interfaces | 2x USB, 2x Ethernet, 2 x SMI (Option) |
Noise Level | < 70 db (A) |
Power Supply | 100 - 240 VAC, 170 VA, 50/60 Hz. |
Compressed Air Connection | 0.4 - 0.6 Mpa / 4 - 6 bar / 5 - 12 l/min |
Dimensions (L x W x H) | 585 x 182 x 370 mm (23 x 7.2 x 14.6”) |
Weight | 22 kg (48,5 lbs.) |
CE-Conformity | The CoaxStrip 6480 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
Important Note | Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine. |
