CoaxStrip 6580
Fully programmable multi-step stripping machine for coaxial, triaxial and multi-conductor cable as well as single conductor wire up to 17 mm.
Overview

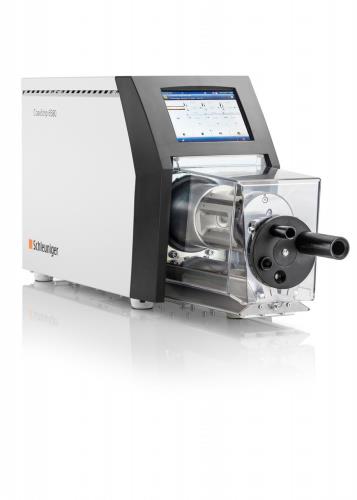

The CoaxStrip 6580 is a fully programmable multi-step stripping machine for coaxial, triaxial, multi-conductor cable and single conductor wire. State-of-the-art electronics, a clear user interface and precision mechanics guarantee repetitive, unmatched Schleuniger stripping quality. Due to the unique 4 blade concept the machine is able to strip thin, tough and slightly out-of-round insulations. The incisions of the blades are linear and perpendicular to the cable axis, resulting in a clean and highly precise cut. In addition, the protective cover can be removed without tools, thus facilitating maintenance of the machine.
The CoaxStrip 6580 is ideal for low volume, quick changeover applications as well as high volume production runs, giving the best possible flexibility and productivity to your production methods.
- Precise and powerful
- Able to strip very thin and tough insulations due to the unique four-blade concept
- Large processing range
- Cable diameter verification
- Barcode scanning function
- S.ON software
Application Range
Programmable settings for each step of each program
- Stripping position
- Incising diameter
- Centering jaw diameter
- Incising speed
- Rotational speed of the stripping head
- Rotational direction of the stripping head
- Incising pause
- Pull-off diameter
- Stripping lengths (partial strip or full strip)
- Pull-off speed
- Pull-off with or without rotation of the stripping head
- Freely selectable stripping sequence
- Cable clamping force
Material
- Cable
- Coaxial Cable
- Corrugated Cable
- Discrete Wire
- Double Insulated Wire Processing
- High Speed Data Cable
- High Voltage Cable
- Kapton
- Multi-conductor Cable
- Polyester
- Polyurethane
- PUR
- PVC
- Rubber
- Shielded Cables
- Silicon
- Single Conductor Cable
- Single Wire
- Solid Wire
- Stranded Wire
- Teflon®
- Tefzel®
- Triaxial Cable
- Wire
- Wire with Special Isolation
Processing Capabilities
- Coax cable strip
- Coaxial cable processing
- Conformable cable processing
- Discrete wire processing
- Discrete wire stripping
- Full or partial strip left and right
- Full strip
- Jacket and inner conductor stripping
- Multi-conductor cable stripping
- Multi-layer stripping
- Multi-step stripping
- Power cable processing
- Triaxial cable processing
- Twisting function
- Two-layer strip
Technical Specifications
| |
Raw Material Diameter | Minimum 1.5 mm (0.059“)
Maximum 17 mm (0.67“) |
Diameter Increments | 0.01 mm (0.001“) |
Strip Length | 100 mm (3.94“) |
Strip Length Increment | 0.01 mm (0.001”) |
Stripping Steps | Maximum 6 |
Clamping | Motor driven with programmable clamping force |
Cycle Time | ≥ 5 s (depending upon cable type and programming) |
Production Rate | 250 - 550 pcs./h (depending upon cable type and programming) |
Memory Capacity | 1000 cables |
Interfaces | 2x USB, 2x Ethernet, 2x SMI (Option) |
Noise Level | < 70 db (A) |
Power Supply | 100-240 VAC, 400 VA, 50/60 Hz |
Compressed Air Connection | 0.4 - 0.6 Mpa / 4-6 bar / 5-12 l/min |
Dimensions (L x W x H) | 670 x 200 x 333 mm (26.4 x 7.9 x 13.1”) |
Weight | 28 kg (62 lbs.) |
CE-Conformity | The CoaxStrip 6580 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
Important Note | Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine. |
