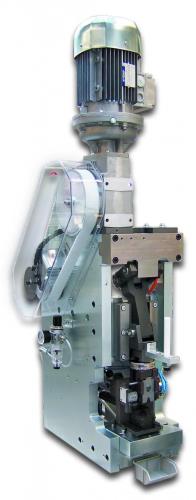

UniCrimp 500 A

UniCrimp 500 A
Heavy duty crimping station with 5 tons of press force for use with the CrimpCenter 67 HD16.

Overview

The UniCrimp 500 A is a crimping machine with 5 tons of press forces. It processes both rear- and side-feed banded terminals (open or closed barrel type) for cable cross sections up to 16 mm² (6 AWG).

  • For processing large cable cross sections up to 16 mm² (6 AWG)
  • For processing rear- and side-feed banded terminals
  • Short cycle times
  • Quick-change applicator base plate
  • Optional crimp force monitoring

Application Range

The UniCrimp 500 A is a heavy duty crimping station for use with the CrimpCenter 67 HD16 automatic cut, strip, and terminate machine. For ease of set-up, the UniCrimp 500 A is equipped with a creep mode. This enables the drive mechanism to be moved backwards and forwards slowly, to facilitate visual checking.

More information

Function

With 5 tons of crimping force, the UniCrimp 500 A processes wire cross-sections up to 16 mm² (6 AWG). With the proper crimp applicator, both side- or rear-feed banded terminals can be used. The UniCrimp 500 A is user-friendly and can be equipped with a crimp force monitoring option.

Options

  • Alternative applicator adapter plates
  • Crimp force monitoring
  • Pneumatic feed kit
  • Ring bolt M16 (for transportation with a lifting jack)
  • Transport cases for air- / sea- / truck-packing

Features

  • Combined crank / knee lever drive for tremendous power generation
  • Quick-change applicator base plate
  • Creep mode for easy set-up

Technical Data

Crimping Force

49 kN (5 tons)

Conductor Cross-Section

Up to 16 mm² (6 AWG)

Stroke

40 mm (1.58”)

Shut Height

Standard: 158.38 (6.23“)
Optional: 135.78 (5.34“)

Cycle Time

1 s

Power Supply

1 / N / PE AC 115 - 230 V, 50/60 Hz, 16 A

Dimensions (L x W x H)

390 x 550 x 1,290 mm, (15.35 x 21.65 x 50.78”) Without base frame

Weight

197 kg (434 lbs.)

CE-Conformity

The UniCrimp 500 A fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

We recommend that wire samples be submitted in case where there is doubt as to the
processing capabilities of a particular machine.
