SealLoad 3100

SealLoad 3100

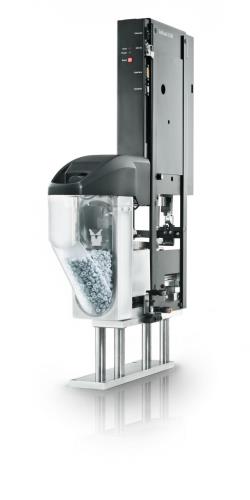

Sealing station for CrimpCenter.

Overview

The seal loading station for the CrimpCenter series conveys and orientates loose weather seals and positions them over previously stripped wires. Suitable for all types of seals, including mini- and hard-shell seals. Optional seal monitoring (SealCheck). Existing SLU 3000 SealKits can be utilized.

  • Improved cycle time due to optimized mechanism
  • Tool-less kit changeover and multi coupling
  • High precision of the seal loading and monitoring
  • Low energy consumption
  • Appealing design and ergonomics
  • Fully integrated with EASY software

Application Range

All types of seals up to a length of max. 19 mm (0.748”) and outside diameter of 17 mm (0.669”), also mini-, hard-shell and oval seals. Special sizes on request.

More information

Special Features

  • New optimized seal fitting unit for CrimpCenter family
  • Improved cycle time due to optimized mechanism
  • Adapter for the integration of other seal kits
  • Compact construction with very good accessibility, kit change without tooling and multi-coupling
  • SealKits (hard-shell, oval, mini-seals)
  • Compatibility of the SLU 3000 SealKits
  • High precision of the seal fitting and monitoring
  • Low energy consumption
  • Reduced operating noises
  • Larger transparent seal container
  • Appealing design and ergonomics
  • Setting and operating using EASY software

Options

  • SealCheck
  • SealLevelMonitor with warning light
  • SealKits for all types of seals
  • Mini-seal and hard-shell SealKits
  • AdapterKit for the integration of other seal kits
  • Spare parts kits
  • Setup gauge for AdapterKit
  • SealCleaner 20
  • SealCam

Technical Data

Raw Material Diameter

Maximum 6 mm (0.25“)

Seal Diameter

Maximum 17 mm (0.669")
Maximum 19 mm (0.78") length
(other sizes on request)

Cycle Rate

Approx. 150 ms (without options)

Cycle Time

Approx. 750 ms

Noise Level

<70 dB (A)

Compatibility

SLU + SL SealKits / AdapterKit

Interfaces

Ethernet & I/O (24VDC)

Power Supply

24 VDC, 300 W

Compressed Air Connection

Min. 6 bar (90 psi) compressed air, not oiled, filtered and dry

Dimensions (L x W x H)

650 x 100 x 750 mm (25.6 x 3.9 x 29.5")

CE-Conformity

The SealLoad 3100 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
