GLW PC 65

GLW PC 65

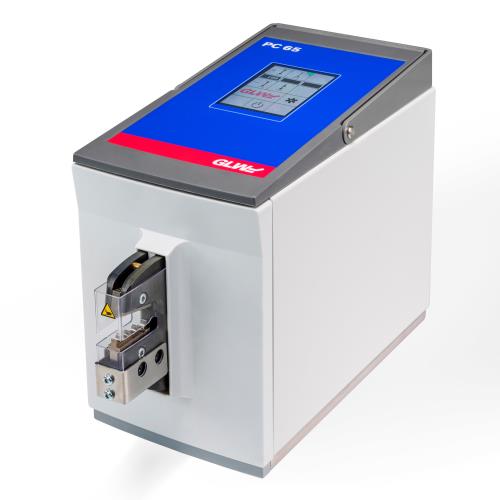

Pneumatic crimper with press capacity of 15 kN.

Overview

The PC 65 pneumatic crimping machine presses a wide range of cont-acts. The crimping process is actuated via a foot switch. This leaves the operator’s hands free to insert the conductor and contact. The contact can be fixed before the crimping process via the two-step operating mode. Even complex contacts can thus be processed easily and precisely.

Frequently used settings can be stored in a database via the PC 65’s touch panel.

Pressure and displacement sensors monitor the crimping force and the closing movement of the dies. In case of deviations, the crimping process is interrupted and a fault message is shown on the display. This ensures a consistently high crimping quality.

The carrying handle and lightweight construction make the PC 65 the perfect tool for a wide range of workstations. The dies can be easily changed in a few simple steps. In addition to a large number of standard dies, special designs are also possible.

  • Compact and powerful
  • Easy to use
  • Wide selection of crimping dies
  • Positioning aids for easier crimping
  • Low energy costs by optimized air control

Technical Specification

Press capacity:

15 kN

Cycle time

1 s

Power supply:

110 - 240 VAC / 50-60 Hz

Dimensions

320 x 222 x 140 mm

Weight:

10 kg / 22 lbs

Part no.:

008588

Compressed air supply:

5 bar / 0.5 MPa
