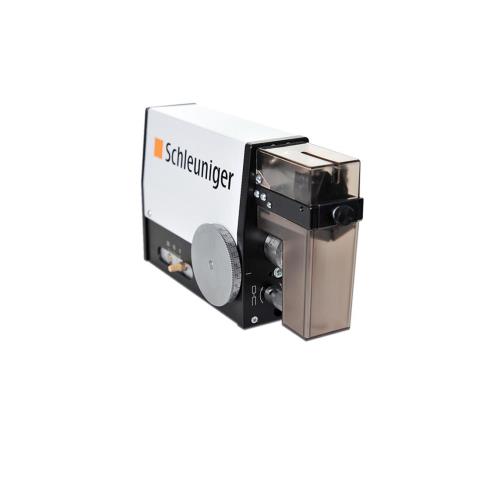

UniStrip 2015

UniStrip 2015
Pneumatic wire and cable stripping machine for stripping discrete wires and small multi-conductor cables up to 3.2 mm (0.12") O.D.

Overview

The UniStrip 2015 is a pneumatic wire and cable stripping machine and the perfect solution for stripping discrete wires and small multi-conductor cables up to 3.2 mm (0.12") O.D. The compact machine strips lengths up to 20 mm (0.78").

  • Extremely short cycle times
  • No blade change necessary
  • Strips very short cables
  • Simple machine operation
  • Robust & reliable

Application Range

The Unistrip 2015 has been proven thousands of times over to process wires and cables. The machine operates with extremely fast cycle times and features a universal blade system that eliminates time consuming changeovers. Absolute precision, high cost effectiveness, and a very short return on investment are the main characteristics of this machine. The compact and slender design allows for several units to be used on one workstation and has proven most efficient particularly when processing wire harnesses and multi-core cable.

Material

  • Cable
  • Discrete Wire
  • Kapton
  • PUR
  • PVC
  • Rubber
  • Single Conductor Cable
  • Solid Wire
  • Stranded Wire
  • Teflon®
  • Tefzel®
  • Wire

Processing Capabilities

  • Discrete wire processing
  • Full strip
  • Multi-conductor cable processing
  • Partial strip

More information

The Versatile Specialist for Highest Quality Demands

The pneumatically operated UniStrip 2015 stripping machine excels with its compact design, fast cycle times and infinite settings for conductor diameters, stripping and pull-off lengths.

Adjustable Processing Parameters

  • Stripping lengths partial strip
  • Stripping lengths full strip
  • Stripping diameter
  • Stripping position

Technical Specifications

Conductor Cross-Section

0.03 – 2.08 mm² (32 – 14 AWG)

Diameter Precision

0.01 mm (0.001")

Raw Material Diameter

Maximum 3.2 mm (0.12“)

Strip Length

1 - 20 mm (0.04 - 0.78")

Strip Length Increment

Full strip: 0.5 mm (0.019")
Partial strip: 2 mm (0.078")

Cycle Time

approx. 0.3 s

Compressed Air Connection

5 - 7 bar (75 - 105 psi)

Noise Level

<75 dB (A)

Dimensions (L x W x H)

265 x 70 x 135 mm (10.4" x 2.8" x 5.3")

Weight

Net: 2.0 kg (4.4 lbs.)
Gross: 2.4 kg (5.3 lbs.)

CE-Conformity

The UniStrip 2015 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
