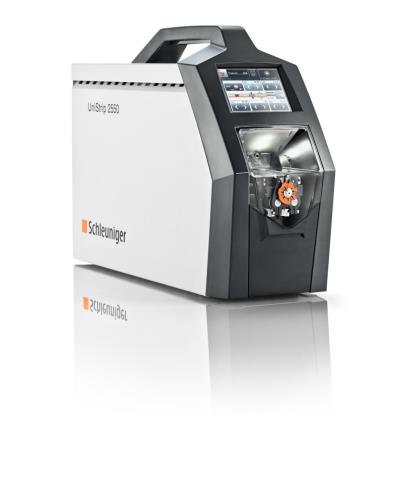

UniStrip 2550

Programmable stripping machine for wire sizes from 0.03 - 6 mm2 (32 - 10 AWG) and jacketed cables up to 5.5 mm2 (0.22").

Overview

The UniStrip 2550 is a fully programmable stripping machine, offering high precision and flexibility. It strips wires ranging in size from 0.03 - 6 mm² (32 - 10 AWG) and jacketed cables up to 5.5 mm (0.22”) in diameter. The machine comes standard with V-blades, the optimum solution for stripping most wires without having to change blades. The UniStrip 2550 can also be equipped with radius, die or flat blades, depending on the application. These special blade types are used for stripping wires with difficult to strip insulations such as Teflon, Kapton, Kynar, etc., typically used in the military and aerospace industries.

Intuitive color touchscreen user interface
No mechanical adjustments required when using V-blades
Very sensitive trigger sensor – works great for small, flexible wires
Operator has clear view of the entire working area
Various blade types available
Barcode scanning function

Application Range

The Schleuniger UniStrip 2550 strips wires ranging in size from 0.03 – 6 mm² (32 – 10 AWG) and jacketed cables up to 5.5 mm (0.22") in diameter. The machine comes standard with V-blades, the optimum solution for stripping most wires without having to change blades. Through the use of special blades, the range of applications can be expanded. Using the color touchscreen, the operator selects the desired wire size from the preprogrammed library and all parameters (cutting diameter, clamping pressure, blade way back, etc.) are automatically set. The operator edits the stripping and pull-off lengths as required and the machine is ready for operation. The UniStrip 2550 begins the stripping process when the wire end touches the trigger sensor. The wire is automatically clamped and the stripping process is performed according to the programmed values. If desired, the program can be saved to internal memory for future use.

Material

Cable
Discrete Wire
Flat Cable
Flat Ribbon Cable
Kapton
Multi-conductor Cable
PUR
PVC
Rubber
Single Conductor Cable
Solid Wire
Stranded Wire
Teflon®
Tefzel®
Wire

Processing Capabilities

Die-blade functionality/capability
Discrete wire processing
Flat or zipcord cable processing
Full strip
Multi-conductor cable processing
Multi-step stripping
Partial strip

More information

Features

Intuitive color touchscreen user interface
No mechanical adjustments required when using V-blades
Very sensitive trigger sensor – works great for small, flexible wires
Operator has clear view of the entire working area
Various blade types available
Barcode scanning function

Programmable Processing Parameters

Pull-off speed
Stripping lengths partial strip
Stripping lengths full strip
Stripping diameter
Wayback (opens blades slightly before pulling off)
Feed rate of the stripping blades
Cable clamping force

Technical Specifications


Conductor Cross-Section	0.03 – 6 mm² (32 – 10 AWG)
Raw Material Diameter	Maximum 5.5 mm (0.22")
Diameter Increments	0.01 mm (0.001")
Strip Length	Minimum 1.5 mm (0.06") With recut: Minimum 0.5 mm (0.02") Maximum 43 mm (1.69")
Pull-Off Length	Maximum 22 mm (0.86")
Strip Length Increment	0.1 mm (0.01“)
Cycle Time	0.35 s (0.75 mm² (18 AWG) wire, stripping length 10 mm (0.39"), pull-off length 5 mm (0.19"))
Cycle Start	Automatic trigger sensor or optional foot pedal
Raw Material Type	PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc.
Clamping	Programmable clamping force
Memory Capacity	1,000 wires or cables (memory function available only with "extended wire")
Interfaces	Foot pedal, USB "Host"
Options	Foot pedal, special clamping jaws
Noise Level	<70 dB (A)
Power Supply	100/115 VAC, 230/240 VAC, 65W / 50/60 Hz
Dimensions (L x W x H)	390 x 130 x 280 mm (15.3" x 5.1" x 11.0")
Weight	9.4 kg (21 lbs.)
CE-Conformity	The UniStrip 2550 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
