CableCoiler 1450

CableCoiler 1450
Strong single pan coiling system with max coil weight of 40 kg (88lbs)

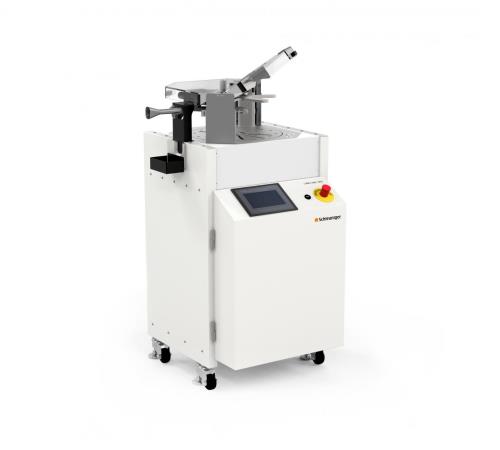

The CableCoiler 1450 is a single pan coiling system that is used to coil wire, cable or tubing. It features a rotary design with moveable pins to adjust for different coiling diameters. Another unique feature of this design is the easy unloading scheme, using retracting coiling disc with and an automatic safety cover lift. The machine works in “auto coil of loose rings” mode as an integrated post processing accessory for use with cut and strip machines.

Application Range

Cable diameter is up to 16 mm (0.63”).

More Information

Parameters and Jobs

  • Programmable parameters:
    • Cable parameters ( diameter, length in offline mode)
    • Coiling parameters (inner/outer diameter)
    • Configuration parameters (distance after cutting, speed synchronization adjustment, etc.)
  • Programmed parameters can be saved in jobs for easy and fast loading (by UI or even barcode scanner) for operation
  • Jobs can be imported/exported between coilers by USB stick


  • As the coiling disc rotates, the material is coiled around the inner pins
  • When the coiling is completed, the coiler pulls out the material from processing machine and stops
  • The coiling disc raises up and takes the coiled material out of the pins while the safety shield opens automatically so the operator can easily remove the coil
  • The unique design of coiling system ensures the safety protection during operation by doing all the rotating movements in a down position with closed and monitored cover

Technical Specifications

Raw Material Diameter

Up to 16 mm (0.63”)

Workpiece Length

Minimum 1,500 mm (59”)

Coil Diameter

Inner Diameter 100 – 330 mm (4.0 – 13.0”)
Outer Diameter Up to 330 mm (13.0”)

Coil Weight

Maximum 40 kg (88 lbs)

Coil Height

Maximum 120 mm (4.7”)

Coiling Speed

Offline: 1.5 – 4.8 m/s (4.9 – 15.7 ft./s) depending on coil diameter
Auto coil: Synchronized with process machine

Memory Capacity

Up to 1,000 jobs


SMI standard (I/O signals and speed information), Emergency Stop

Power Supply

100/115 VAC, 60 Hz, 230/240 VAC, 50 Hz, 1000 VA

Compressed Air Connection

6 bar (90 psi)


120 kg (266 lbs)

Dimensions (L x W x H)

610 x 700 x 1,400 mm (24 x 28 x 56“)


The CableCoiler 1450 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
