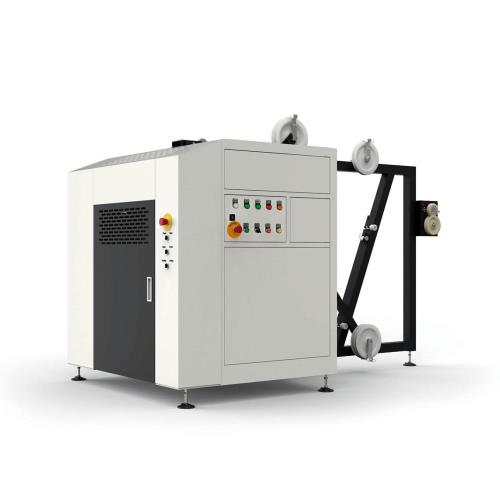

PreFeeder 3300

PreFeeder 3300
Powerful cable feeding system for reels weighing up to 150 kg (330 lbs).

Overview

The PreFeeder 3300 is a powerful cable feeding system for reels weighing up to 150 kg (330 lbs). The system distinguishes itself through its simple design and ease of use. For easy reel handling and fast changeovers, all axes are electrically driven. The PreFeeder 3300 uses a shaftless design for easy loading and unloading of reels.

The integrated cable accumulator controls the speed of the dereeling drive. Surveillance functions provide greater security during setup and operation. With this concept a cost efficient solution for a wide range of applications is achieved.

  • Powerful cable feeding system for reels weighing up to 150 kg (330 lbs.) with a maximum diameter of 600 mm (24”)
  • Shaftless design for easy loading and unloading of reels
  • Motorized axes for fast changeovers and simple operation
  • High feeding dynamic allows higher production rates and increases the economic efficiency of the processing line

Application Range

Cable diameter up to 16 mm (0.63")
Reel size up to 600 mm (24") in diameter
Reel width up to 370 mm (14.6")
Reel weight 150 kg (330 lbs.)

Technical Specifications

Reel Diameter

300 - 600 mm (12 - 24“)

Reel Width

270 - 370 mm (10.6 - 14.6“)

Reel Arbor Diameter

40 - 125 mm (1.6 - 5.0“), other dimensions upon request

Reel Weight

150 kg (330 lbs.)

Raw Material Diameter

16 mm (0.63“)

Rotating Speed

400 rpm

Accumulator Volume

1.3 m (51”)1 loop; 2.9 m (114”) 2 loops

Dimensions (L x W x H)

2,430 x 1,270 x 1,660 mm (95.7 x 50 x 65.3“)

Weight

550 kg (1,210 lbs.)

Power Supply

3 x 400 VAC, N, 2.2 KW, compressed air 6 bar (90 psi)

CE-Conformity

The PreFeeder 3300 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
