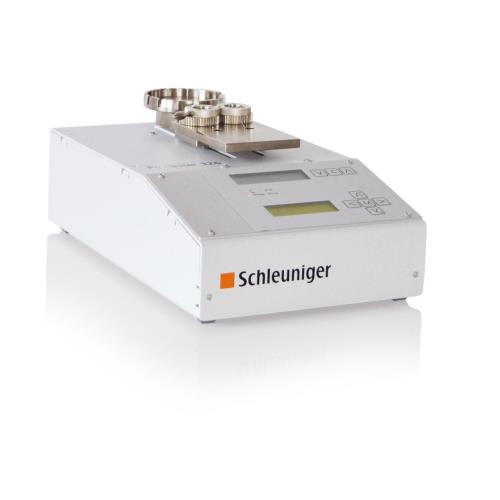

PullTester 326

Motorized testing device with 3 force ranges and 2 pulling speeds for destructive and non-destructive pull force tests up to 2000N (450 lbf.).

Overview

The PullTester 326 is a triple-range, motorized benchtop device for measuring pull forces of crimp connections as well as welded connections. The triple-range capability gives the PullTester 326 incredible application flexibility to handle a wide variety of testing applications.

Simple LCD display for easy programming and digital pull force read out
Speed-controlled motor for consistent pull rates throughout the measuring range
3 selectable force ranges for improved accuracy over a wider range of wires
4 selectable test modes for destructive and non-destructive testing
Job memory for loading test parameters and extracting test results for statistical analysis
RS 232 interface for curve analysis with WinCrimp statistical software

Application Range

Schleuniger’s PullTester 326 is a triple-range, motorized, benchtop unit designed to measure pull test forces of crimp and ultrasonic weld connections on a wider range of wires than single-range pull test devices. Pull test values are critical parameters for quality control and assurance. The PullTester 326 can also perform non-destructive tests (hold to a specified force). This versatile machine has three measuring ranges, which are individually calibrated. The standard measuring ranges are 200 N, 1,000 N, and 2,000 N (45 lbf., 225 lbf., 450 lbf.), however, other variations are available by special order. This triple-range capability ensures the highest accuracy for the widest range of applications. Hand actuated or pneumatic pull test devices can give inconsistent data depending on the operator or pull rate. Some standards specify that a test device must pull with a consistent rate. The Schleuniger PullTester 326 is equipped with a speed-controlled motor, ensuring consistent pull rates throughout the measuring range, resulting in repeatable and accurate data. Pull forces can be measured in poundforce, Newtons or kiloponds. The standard 14-position terminal holder accommodates a wide variety of terminals to suit most applications. A variety of terminal holders, however, are available upon request.

More Information

Special Features

Simple LCD display for easy programming and digital pull force read out
Speed-controlled motor for consistent pull rates throughout the measuring range
Triple-range for improved accuracy over a wider range of wires
RS 232 interface for curve analysis and statistics with WinCrimp software
4 selectable pulling rates depending on test requirements
4 pulling modes for destructive and non-destructive tests
Memory for up to 2,400 values
Networking capabilities

Technical Specifications


Measuring Range	Standard: 0 – 200 N, 0 – 1,000 N, 0 – 2,000 N (0 – 45 lbf., 0 – 225 lbf., 0 – 450 lbf.), other variations available by special order
Unit of Measure	Newton (N), Kilopond (Kp), Poundforce (lbf)
Display	Upper: LCD 6-digit for force readings Lower: LCD 4-line for programming and operation
Pressure Precision	0.5% of measurement range
Operating Temperature	0 – 50° C (0 - 122° F)
Stroke	43 mm (1.69”)
Pulling Speed	4 speeds: 50, 75, 100 mm/min. or high speed (1.97, 2.95, 3.94”/min. or high speed)
Pulling Modes	Pull + Break: Normal pull test until wire breaks Pull + Hold: Pull to a specified force and hold for 1-120 sec (nondestructive test) Pull + Return: Pull to a specified force and reduce (non-destructive test) Pull + Hold + Break: Pull to a specified force and hold for 1-120 sec and pull until wire breaks
Memory Capacity	Up to 48 jobs with 50 measurements (2,400 measurements)
Monitoring	Device display output; Optional WinCrimp statistical software for visual force-time-table on PC and statistical analysis for evaluation with download possibility to Microsoft® Excel software.
Write Protection	IP 20
Printing Capability	RS 232 connection directly to printer or via PC using WinCrimp Software
Network	Multiple devices in combination with crimp force monitor and crimp height measurement device via WinCrimp software with either RS 232 or TCP/IP.
Interfaces	RS 232
Motor	Motor 24 VDC
Weight	Approximately 11 kg. (24 lbs.)
Dimensions (L x W x H)	250 x 130 x 410 mm (10 x 5 x 16”)
CE-Conformity	The PullTester 326 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Important Note	Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
