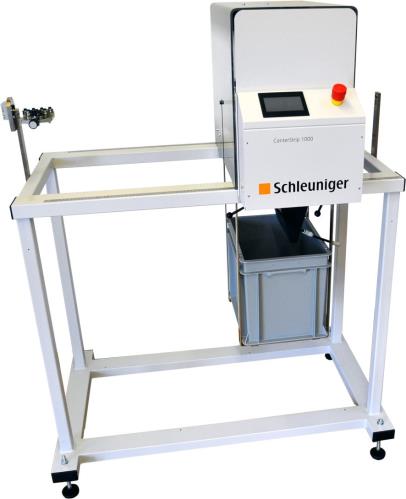

External unit for window strip processing with fully automatic crimping machines or cut & strip machines.

Overview

The CenterStrip 1000 is designed to precisely strip insulation windows from wires and multi-layer cables ranging from 0.5 – 10 mm² (20 – 8 AWG). Short cycle times, simple operation, and easy integration make the CenterStrip 1000 an ideal add-on to automatic wire processing systems, such as fully automatic crimping machines or cut & strip machines.

  • Full insulation cut-out (window)
  • Easy integration with various automatic wire processing machines
  • Excellent accessibility with vertically raising safety cover
  • Fast and simple changeover to other cross sections / stripping lengths

Application Range

The CenterStrip 1000 is designed to precisely strip insulation windows from wires and multi-layer cables ranging from 0.5 – 8 mm² (20 – 8 AWG). Short cycle times, simple operation and easy integration make the CenterStrip 1000 an ideal add-on to automatic wire processing systems, such as cutting machines or cut & strip machines. The CenterStrip 1000 completely removes the insulation at programmed positions along the wire. Precise manufacturing of wire specific blades prevents damage to conductor strands. All common insulation types can be processed.

Material

  • Shielded Cables
  • Single Wire
  • Tubes + Pipes
  • Wire with Special Isolation

More information

Features

  • Full insulation cut-out (window)
  • Easy integration with various automatic wire processing machines
  • Excellent accessibility with vertically raising safety cover
  • Start / ready / busy signals / easy interface
  • Fast and simple changeover to other cross sections / stripping lengths
  • Active removal of stripping waste

Technical Data

Conductor Cross-Section

0.5 - 8 mm² (20 –8 AWG)
Bigger cross sections on request

Cycle Time

Maximum 550 m/s

Strip Length

5 – 38 mm (0.2 – 1.4”) Other sizes on request

Raw Material Diameter

Maximum 10 mm (0.39“)

Power Supply

230 V, 50 Hz

Compressed Air Connection

5 – 8 bar (75-115 psi), not oiled, dry and filtered compressed air

Dimensions (L x W x H)

1200 x 710 x 1450 mm (47.3 x 28 x 57’’)

Weight

110 kg (220 lbs.)

Compatibility

Not compatible with the CrimpCenter 36 S or 36.

CE-Conformity

The CenterStrip 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
