UniCrimp 500 B

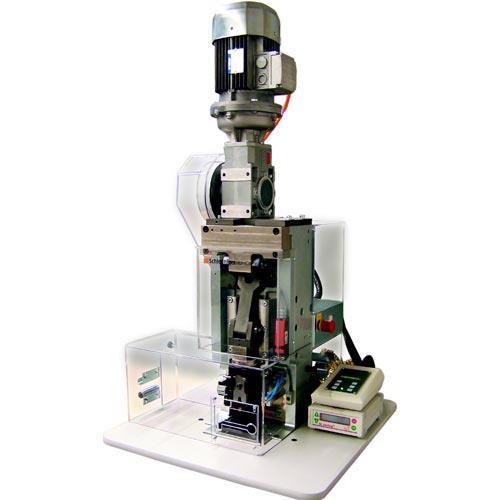

Crimping Machine With 5 tons of crimping force, the UniCrimp 500 B processes cable cross-sections up to 16 mm2 (AWG 6). With the proper crimp applicator it can be used as a bench-top machine for semi-automatic processing of both side or or rear feed banded terminals. The UniCrimp 500 B is user-friendly and can be equipped with a crimp force monitoring option.

Function

The crimping process is triggered by a foot pedal. For ease of set-up, the UniCrimp 500 B is equipped with a creep mode. This enables the drive mechanism to be moved backwards and forwards slowly, to facilitate visual checking.

Special Features

  • Crank-/knee lever drive
  • Quick-change applicator base plate
  • Creep mode
  • Applicator base plate for HeavyCrimper, shut height 158.38 mm (6.23”)

Options

  • Protection cover for crimp applicators
  • Protection cover safety plate for 10 mm (0.39”) O.D.
  • Terminal reel bracket for side feed applicators
  • Terminal reel bracket for rear feed applicators
  • Crimp Force Monitoring
  • Adapter set for standard crimp applicators with shut height 135,78 mm (5.34”) (FlexoCrimper / Uni-A)
  • Installation kit for pneumatic crimp applicators
  • Air service unit
  • Table board
  • Flange plate (1 set)
  • Waste container
  • Ring bolt M16 (for transportation with lifting jack)
  • Transport cases for air- / sea- / truck-packing

Technical Specifications

Attribute Value
Force 50 kN

Power

1.1 kW

Cross Section Range

Up to 16 mm2 (AWG 6)

Stroke

40 mm (1.57 “)

Shut Height

Standard: 158.38 (6.23“), Optional: 135.78 (5.34“)

Cycle Time

1 s

Press Activation

Foot switch

Noise Level

85 dB

Power

1 P / N / PE AC 115 – 230 V , 16A

Capacity

50/60 Hz

Dimensions (L x W x H)

400 x 550 x 1290 mm, without terminal reel bracket, w/o plate
(15.74” x 21.65” x 50.78” )

Weight

198 kg (436 lbs.)

CE -Conformity

The UniCrimp 500 B fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

Important Note

Schleuniger recommends that wire samples be submitted in case where there is
doubt as to the processing capabilities of a particular machine.
